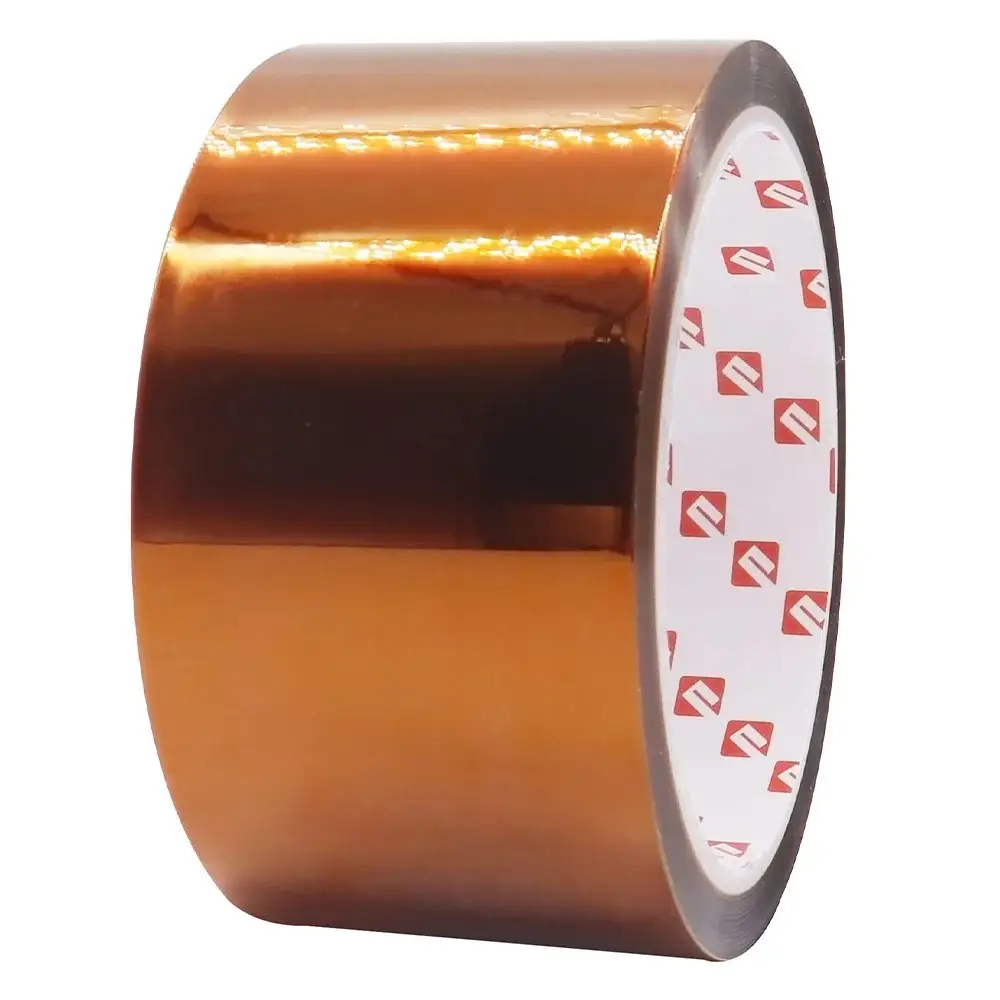

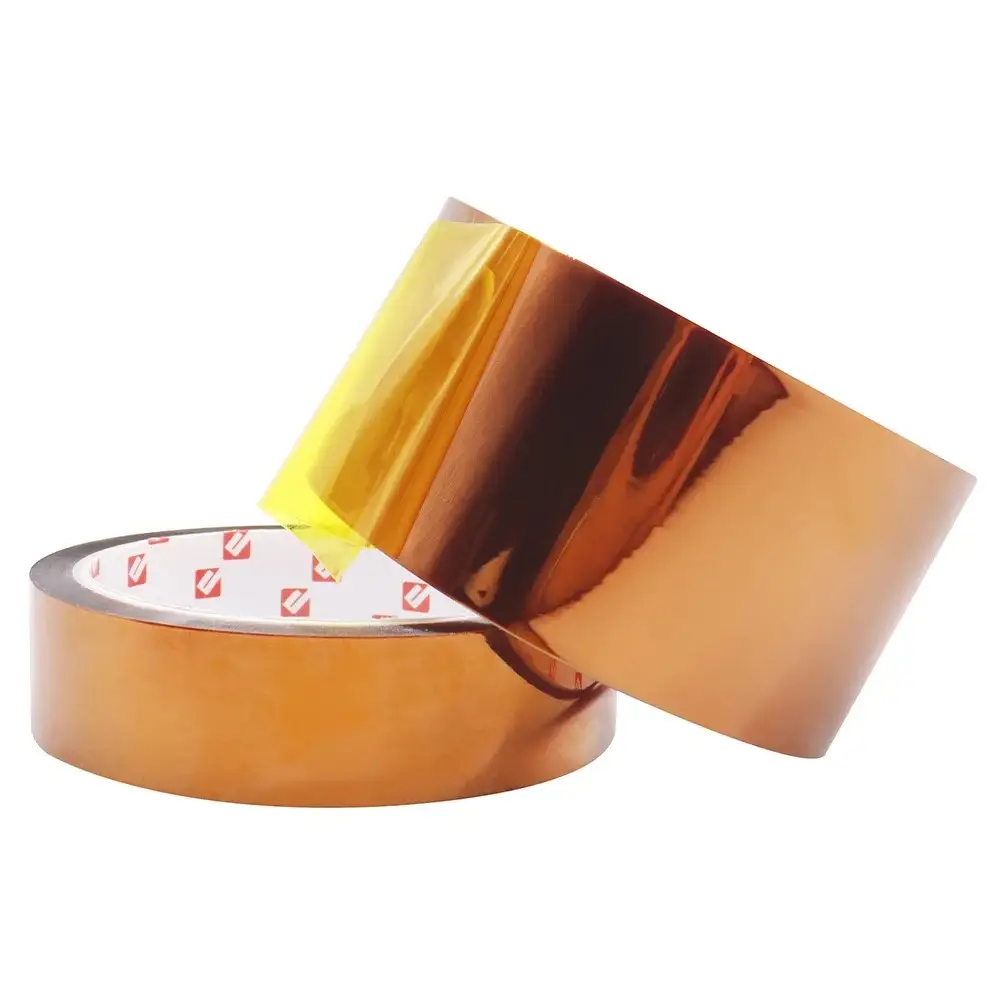

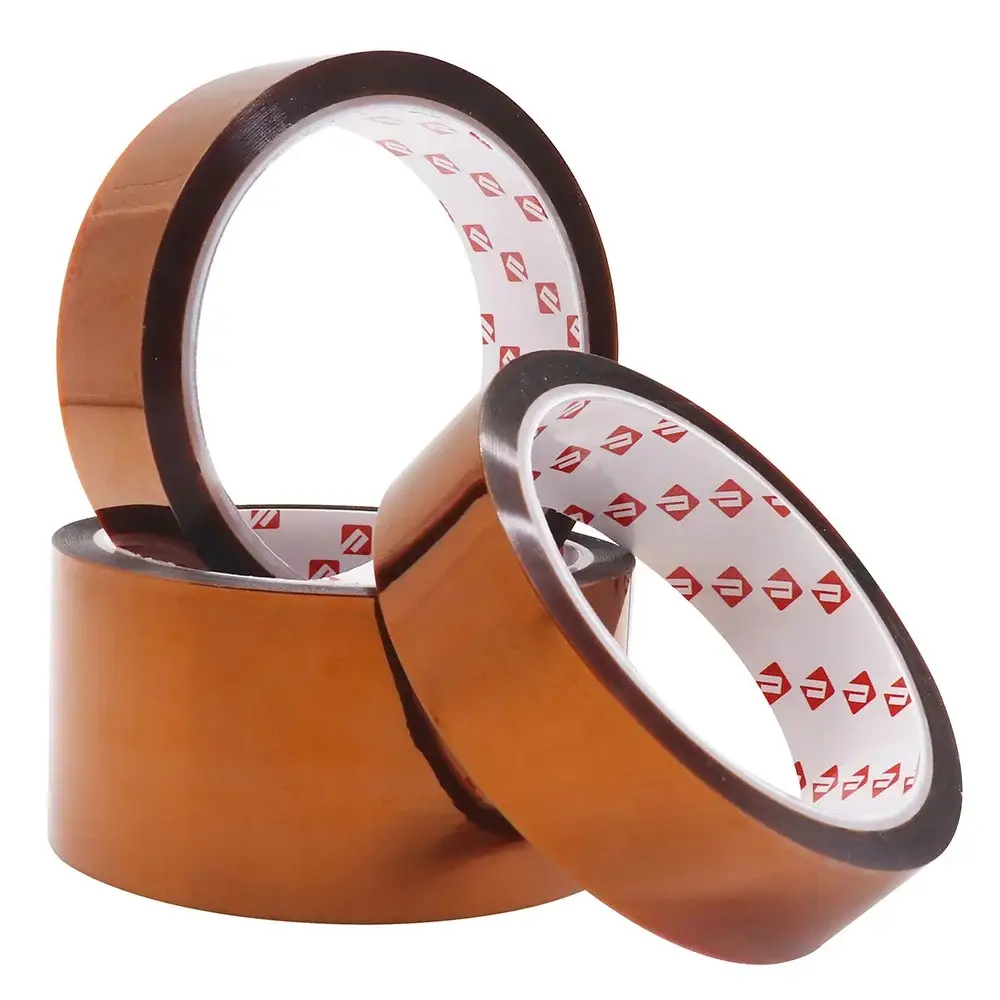

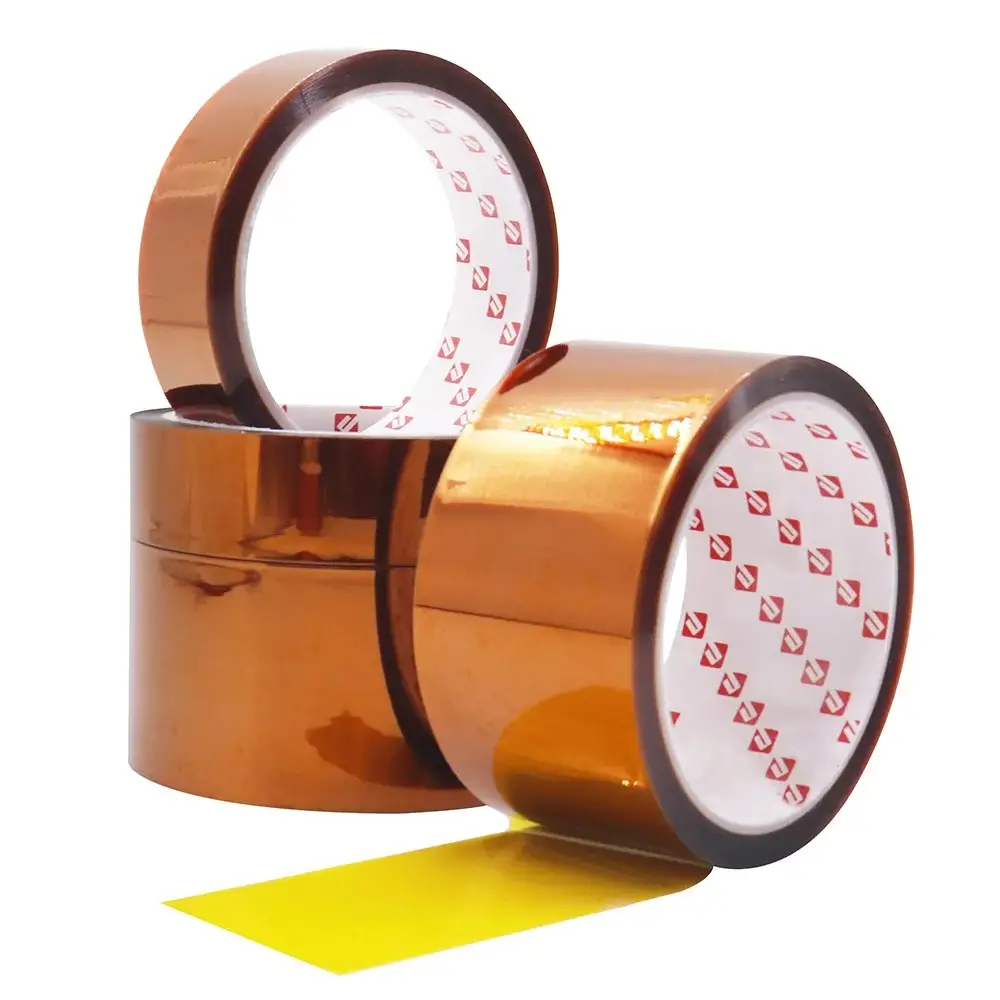

Anti-static single side kapton
The anti-static single side kapton tape series is a high-temperature resistant tape made of polyimide film as the base material, the surface of the gold finger is coated with anti-static agent, and the reverse side is coated with silicone pressure-sensitive adhesive. It has excellent insulation, breakdown voltage resistance, and high temperature resistance of 260 degrees.
1.High -temperature insulation wrapped around the electronic industry transformers, motors, coils, capacitors, and frequency conversion power suppliers.
2.Suitable for covering and protection during printing line boards (PCB), SMT tin furnaces, and peak welding.
3.High -end electrical insulation protection and lithium battery positive&negative poles.
4.The lithium battery manufacturing is bundled.
Product Features
1.Excellent Insulation
2.Breakdown Voltage
3.High Temperature Resistance
| Test items | Test method | Unit | Typical value | |
| Color | 目测Visual inspection | – | Dark Brown | Dark Brown |
| Type of glue | – | – | Silicone | Silicone |
| Base material | – | – | Polyimide film |
Polyimide film |
Substrate thickness | ASTM D-3652 | mm | 0.025 | 0.05 |
| Total thickness | ASTM D-3652 | mm | 0.06 | 0.08 |
| Peel strength（180°） | ASTM D-1000 | N/inch | ≥5 | ≥5 |
| Tensile strength | ASTM D-1000 | N/inch | ≥100 | ≥200 |
| Back anti static index | / | Ω | 106～1010 | 106～1010 |
| Elongation at break | ASTM D-1000 | % | ≥45 | ≥55 |
| Voltage resistance | GB/T72792-1998 | Kv | 5 | 7 |
| Temperature range | GB∕T 32368-2015 | ℃ | -73~260 | -73~260 |
